额定载重：400kg
提升高度：1000/1600mm

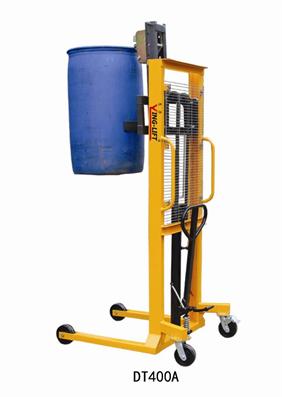

产品详细介绍：产品名称：液压油桶堆高车 DT400A
集油桶的搬运、堆高于一身Integrated functions of transporting and stacking特殊轧制工艺制造的”C”型门架，坚固安全Gantry made of special-rolled industrial-manufactured C-type steel which is strong and safe叼扣式鹰嘴结构，适合钢制油桶和塑料油桶，高质量油缸，起升高度能达到1600mmEagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder, high lifting speed, maximum lifting height:1600mm提升过程中自动夹紧油桶，工作安全可靠Automatic clamping tight the oil drum during lifting which is safety and reliable油桶搬运车的优点是整车结构简单轻巧，操作简单省力，一个人即可完成整个油桶的搬运、堆高、和装卸车！Oil drum carrier is featured by its simple-and-light-structure outline design which enables single one man complete transporting, stacking and loading & unloading.适用于化工、食品车间、染料、涂料、胶黏剂、石油、食油等流质、液体的搬运，装卸等使用。Applicable for chemical plants and food plants for transferring, loading & unloading and compounding materials of fluids, such as dyes, paintings, adhesives, petrol and edible oils, etc.型号Model额定负载Loading Weight(KG)净重Net Weight(KG)脚轮规格Wheel Dimension(mm)前支腿内、外宽Inner/Outer Width of Front Leg(mm)整车 尺寸Outline dimensions(mm)转弯半径Turning Radius (mm)提升高度Lifting Height（mm）DT400A400130Ф150*50630/8101110×900×210014001600产品名称：液压油桶堆高车DT400B

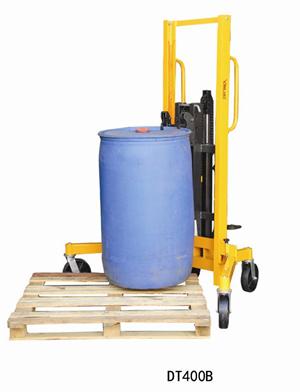

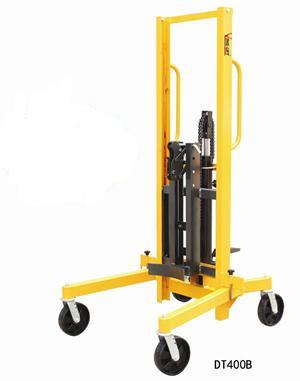

DT400B具有较大的提升高度及可调式的支撑腿，有效地扩大了使用范围
产品参数：
号Model额定负载Loading Weight(KG)净重Net Weight(KG)脚轮规格Wheel Dimension(mm)支腿可调范围Adjustable Range of Supporting Leg(mm)整车 尺寸Outline Dimension(mm)提升高度Lifting Height（mm）DT400B400123Ф200×50700 — 13701010×900×18501000
